Design

Software architecture

All the toolbox features and functionalities are encompassed in the lime_tbx Python package. This package is structured following a layered architecture with four main layers: presentation, application, business and persistence, and a helper one: common.

lime_tbx package architecture

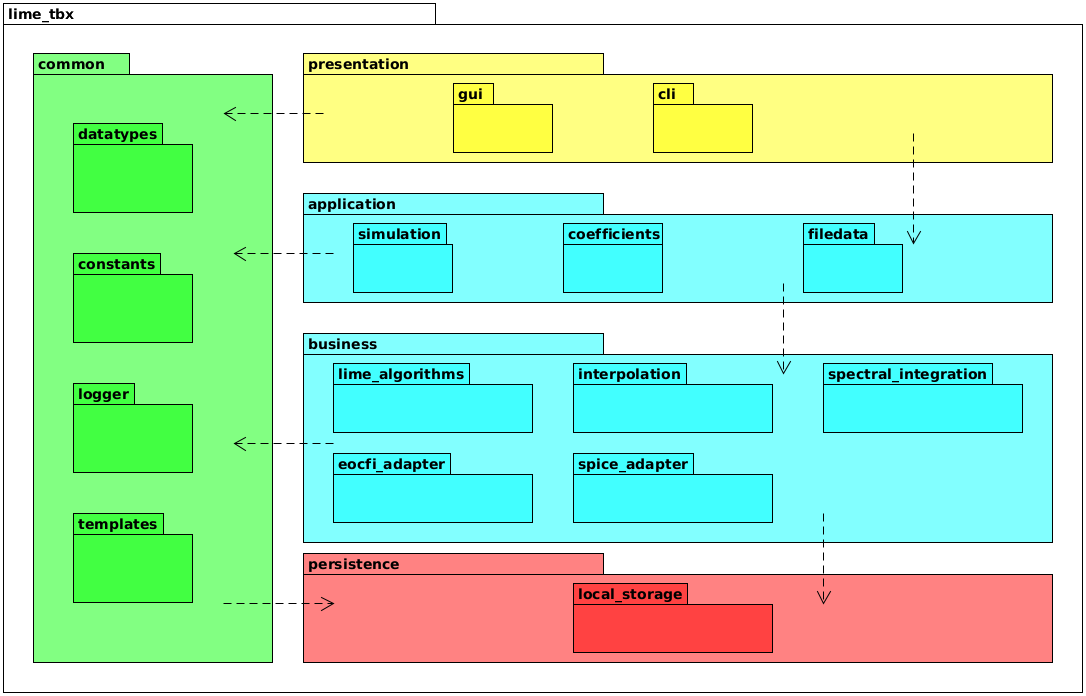

Figure 1: lime_tbx package architecture.

The architecture is described in UML in Figure 1. We can observe the following subpackages:

  • lime_tbx/presentation: Manages user interaction through graphical and command-line interfaces.

    • lime_tbx/presentation/gui: Provides graphical user interface components for visual interaction, including windows, forms, and data visualizations.

    • lime_tbx/presentation/cli: Handles command-line interactions, including parsing user commands, displaying outputs, and handling user input.

  • lime_tbx/application: Defines application-level workflows and orchestrates operations across different components. It encapsulates high-level logic of user stories.

    • lime_tbx/application/simulation: Manages simulation and comparison workflows.

    • lime_tbx/application/coefficients: Provides logic for managing and downloading LIME coefficients.

    • lime_tbx/application/filedata: Handles use cases related to exporting and loading data files.

  • lime_tbx/business: Implements the core domain logic and numerical algorithms used by the toolbox.

    • lime_tbx/business/lime_algorithms: Implements the main LIME algorithms, enabling the calculation of irradiance, reflectance and polarisation.

    • lime_tbx/business/interpolation: Provides numerical interpolation methods.

    • lime_tbx/business/spectral_integration: Handles spectral integration calculations.

    • lime_tbx/business/eocfi_adapter: Interfaces with the EO-CFI library to compute satellite positions.

    • lime_tbx/business/spice_adapter: Provides a simplified interface with NASA’s SPICE toolkit, for precise spacecraft geometry and ephemerides calculations.

  • lime_tbx/common: Contains shared utilities, data structures, and configurations used across the application.

    • lime_tbx/common/datatypes: Defines common data structures, custom classes, and typed objects for consistent data representation.

    • lime_tbx/common/constants: Stores global constants, physical values, and predefined configurations.

    • lime_tbx/common/logger: Implements a centralized logging system for tracking application events, errors, and debugging information.

    • lime_tbx/common/templates: Stores datatype templates needed for compatibility with the obsarray library.

  • lime_tbx/persistence: Handles data storage and retrieval mechanisms.

    • lime_tbx/persistence/local_storage: Manages the retrieval and storage of application data on the local filesystem, including logs and configurations.
